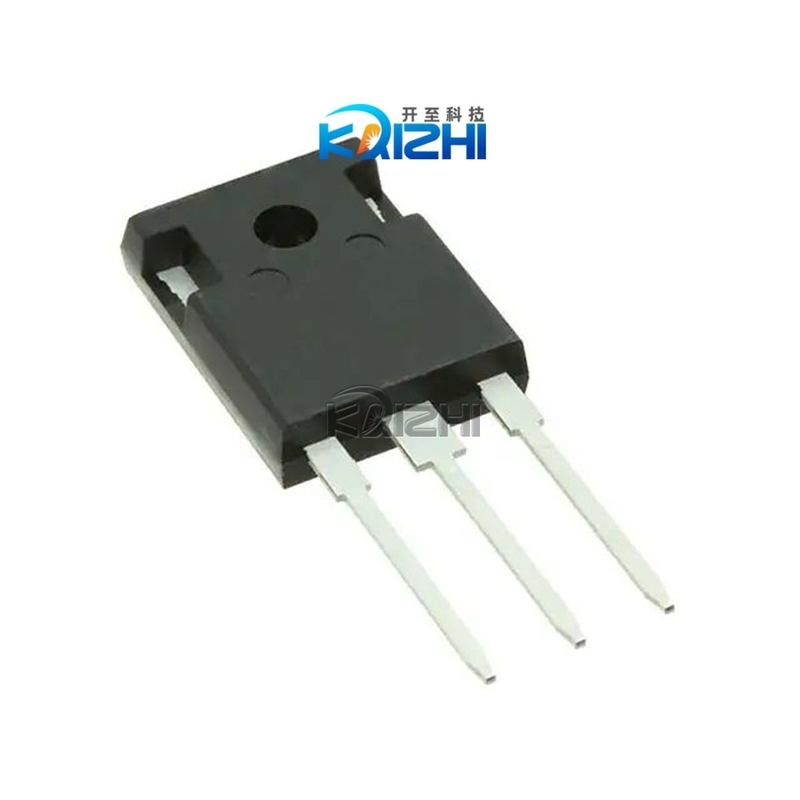

IKW03N120H2FKSA1

Product Details

Payment & Shipping Terms

Description: IGBT 1200V 9.6A 62.5W TO247-3

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Test Condition ::	800V, 3A, 82 Ohm, 15V	Product Category ::	IGBT Modules
Current - Collector Pulsed (Icm) ::	9.9A	Voltage - Collector Emitter Breakdown (Max) ::	1200V
Switching Energy ::	290µJ	@ Qty ::	0
Mounting Type ::	Through Hole	Manufacturer ::	Infineon Technologies
Minimum Quantity ::	240	Factory Stock ::	0
Operating Temperature ::	-40°C ~ 150°C (TJ)	IGBT Type ::	-
Reverse Recovery Time (trr) ::	42ns	Supplier Device Package ::	PG-TO247-3
Part Status ::	Obsolete	Packaging ::	Tube
Gate Charge ::	22nC	Td (on/off) @ 25°C ::	9.2ns/281ns
Input Type ::	Standard	Package / Case ::	TO-247-3
Current - Collector (Ic) (Max) ::	9.6A	Power - Max ::	62.5W
Vce(on) (Max) @ Vge, Ic ::	2.8V @ 15V, 3A	Series ::	-

Test Condition ::	800V, 3A, 82 Ohm, 15V
Product Category ::	IGBT Modules
Current - Collector Pulsed (Icm) ::	9.9A
Voltage - Collector Emitter Breakdown (Max) ::	1200V
Switching Energy ::	290µJ
@ Qty ::	0
Mounting Type ::	Through Hole
Manufacturer ::	Infineon Technologies
Minimum Quantity ::	240
Factory Stock ::	0
Operating Temperature ::	-40°C ~ 150°C (TJ)
IGBT Type ::	-
Reverse Recovery Time (trr) ::	42ns
Supplier Device Package ::	PG-TO247-3
Part Status ::	Obsolete
Packaging ::	Tube
Gate Charge ::	22nC
Td (on/off) @ 25°C ::	9.2ns/281ns
Input Type ::	Standard
Package / Case ::	TO-247-3
Current - Collector (Ic) (Max) ::	9.6A
Power - Max ::	62.5W
Vce(on) (Max) @ Vge, Ic ::	2.8V @ 15V, 3A
Series ::	-

Description

IKW03N120H2FKSA1

The IKW03N120H2FKSA1,from Infineon Technologies,is IGBT Modules.what we offer have competitive price in the global market,which are in original and new parts.If you would like to know more about the products or apply a lower price, please contact us through the “online chat” or send a quote to us!
